  Wallpanel Installation Instructions



  Buttshaker | Buttshaker Amp Hookup Diagrams



Installation / Hook-Up Diagrams

Diagram A - Row of 2 Seating Buttshaker Installation

Diagram B - Row of 3 Seating Buttshaker Installation

Diagram C - Row of 4 Seating Buttshaker Installation

Diagram D - Row of 5 Seating Buttshaker Installation

Diagram E - Row of 6 Seating Buttshaker Installation

Diagram F - Row of 7 Seating Buttshaker Installation

Diagram G - Row of 8 Seating Buttshaker Installation

Diagram H - Row of 10 Seating Buttshaker Installation

Amplifier Hookup Diagrams

Diagram 01a - Single Volume Control (mono)

Diagram 02a - Dual Volume Control (stereo)



Buttshaker Receiver Amplifier Hookup Diagrams

Diagram 01b - Standard Amp Hookup

Diagram 02b - RP-Series Amp Hookup



Mounting Instructions

                Mounting is quite simple.

Step 1.) Lift the the flap on the rear of the seat.

Step 2.) Mount the buttshaker.

RP Buttshaker Amp

Stereo Install Diagram

RP Buttshaker Amp

Mono Install Diagram



  Fiber-Optics Install Video & Instructions.

  Fiber Optics Step-by-Step Install Instructions

STEP 1.) Use dykes or fiber optic cutter to cut 2-2 inches pieces of the fiber optic cable off to use as spacers in the lightbox to keep the fiber optic cable tight.

STEP 2.) Take razor knife ( or razor blade) and make a 3 inch long slit in the shielding of the fiber optic cable. pull the shielding back and cut the 3 inch piece of outside shielding off completely.

STEP 3.) Next take the raw fiber optics now exposed since you cut off the shielding and use your dykes to make all of the fibers even on the end

STEP 4.) Make sure fiber optic holding nut is loose on the fiber optic lightbox and insert the raw fiber optic fibers (no shielding) into the lightbox and insert your spacers you made at the beginning to keep all the fibers tight and where you want them.

STEP 5.) Adjust the fiber optic cable in or out of the lightbox until you get the desired affect (farther in make the stars flicker more , further out makes the stars fade from one color to another) then just tighten down the fiber optic holding nut on the lightbox.

STEP 6.) Plug the transformer into a standard 110 outlet and turn on the lightbox and you are done.

  View the fiber optics install video

Having trouble installing our LED lightboxes? View our installation video and watch as one of our professional installers demonstrates how to hook it all up in an easy-to-follow instructional video.

 Tools Needed:

- Dykes (Or Wire Cutters)

- Box Knife (Or Razor Blade)

- Fiber-Optics

- LED Lightbox

View our Install Video



  Theaterseat Installation Instructions

Theater Seat Install Instructions

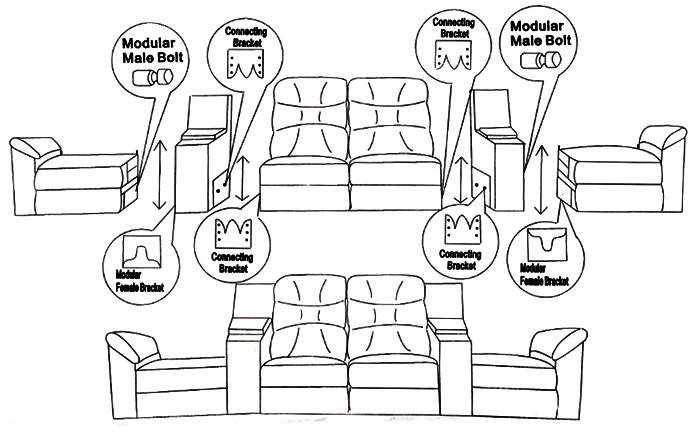

Seat Connection Instructions

Fix the left seat to the left arm by sliding the Modular Male Bolt into the modular female bracket then fix the left arm to the middle seats by sliding the two connecting brackets together. The same method is used on the right side.

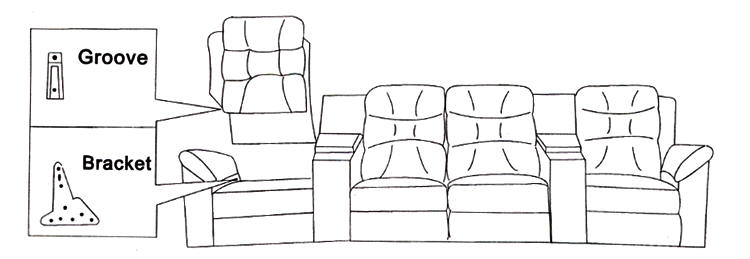

Backrest Installation

Align the groove on the back cushion to the bracket on the seat cushion and slide in to place.

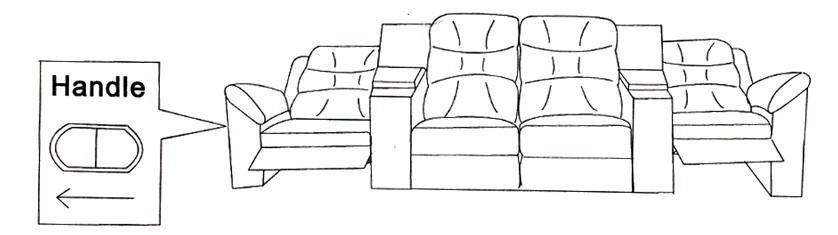

Recline Operation

Pull the handle to recline. Then hold the armrest and lean back until it reclines completely.
