Installation / Hook-Up Diagrams

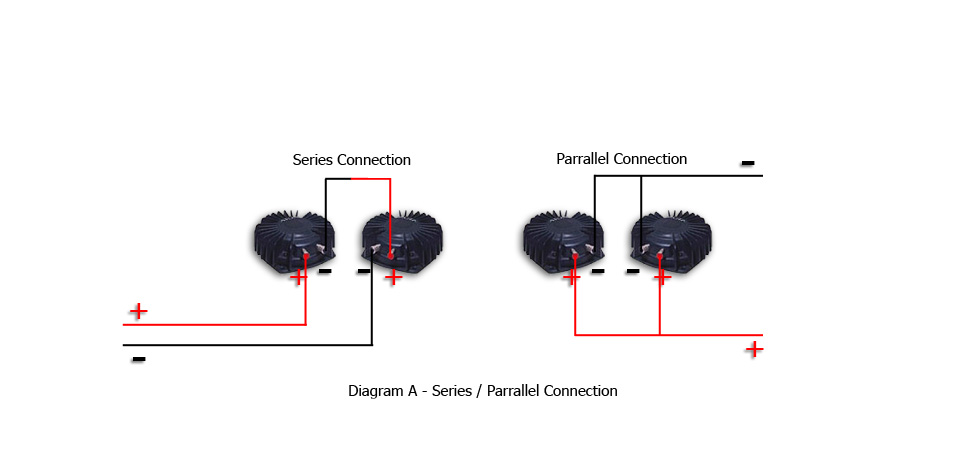

Diagram A -
2 Buttshaker
Installation

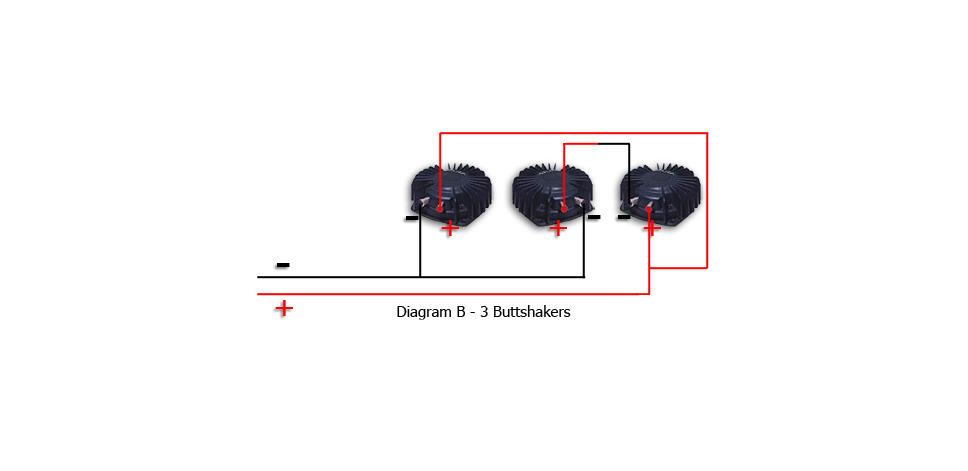

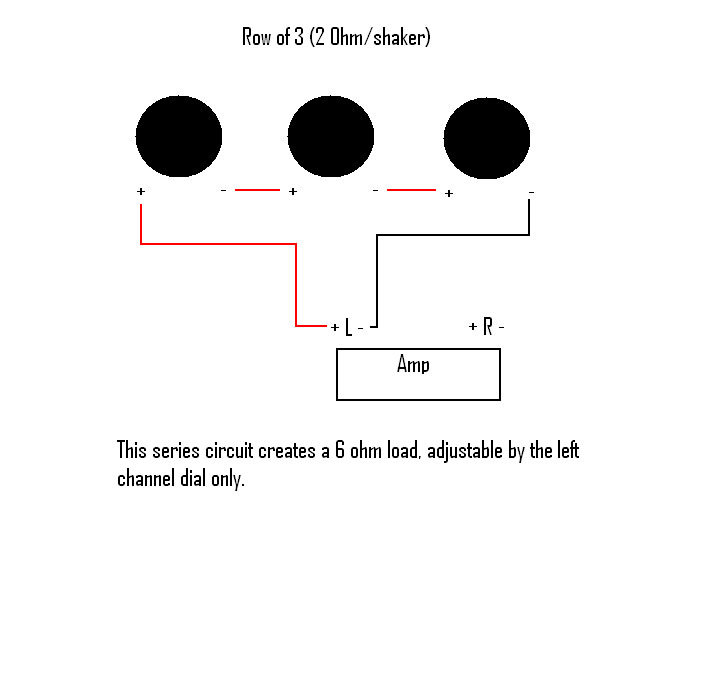

Diagram B -
3 Buttshaker Installation

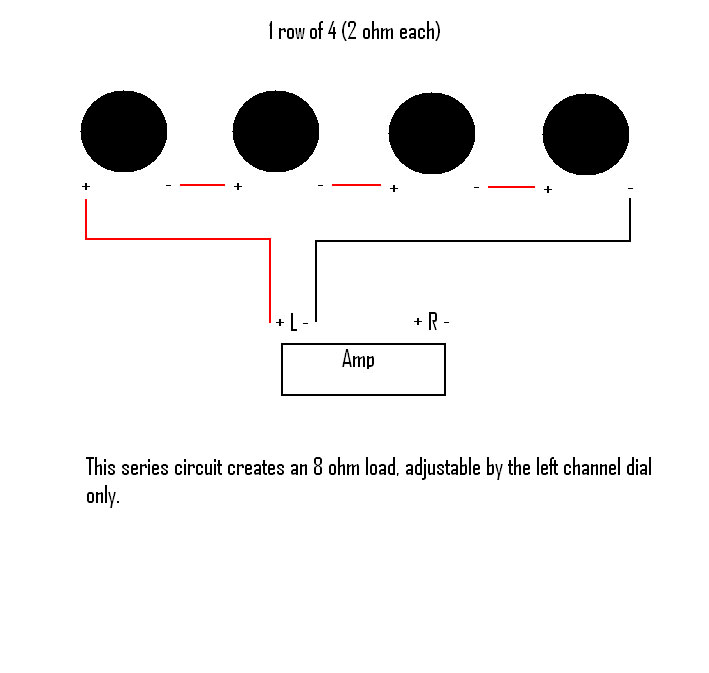

Diagram C -
4 Buttshaker Installation

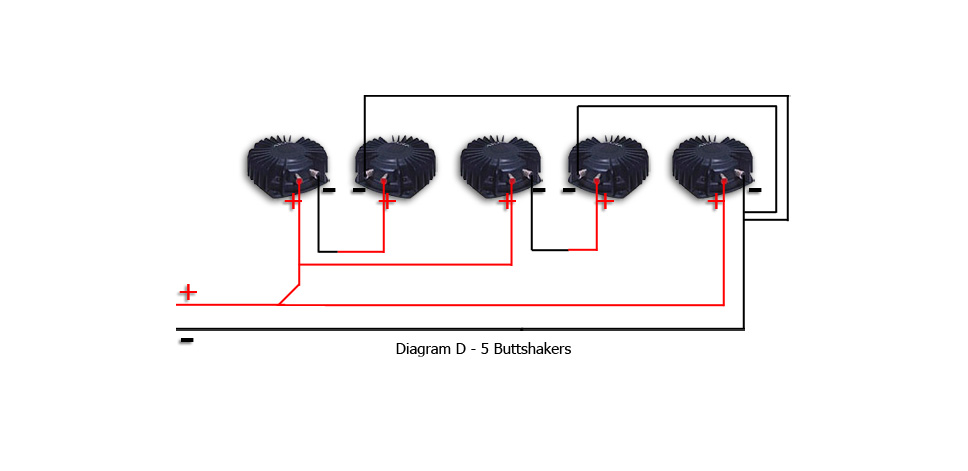

Diagram D -
5 Buttshaker Installation

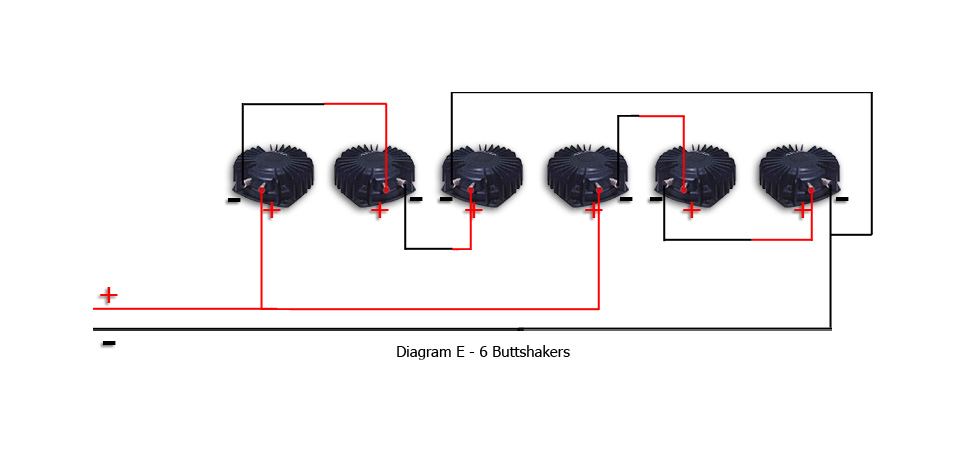

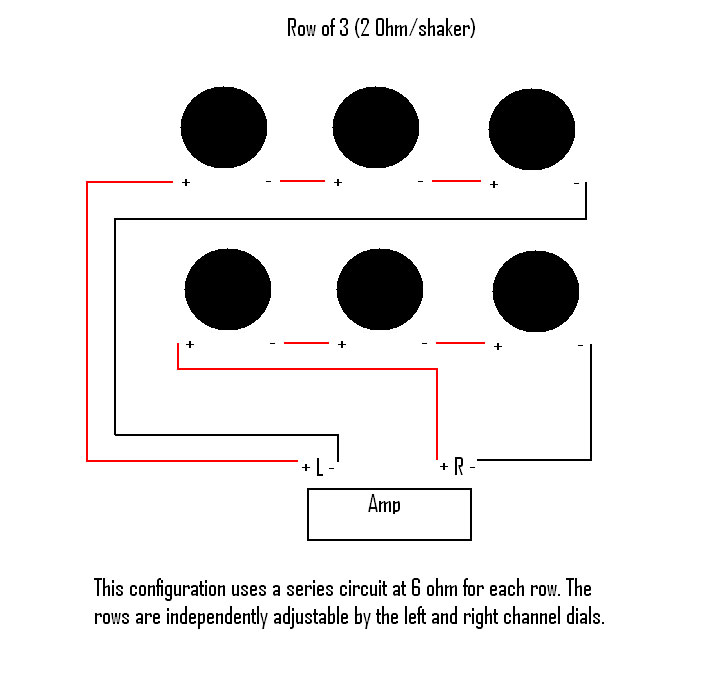

Diagram E -
6 Buttshaker Installation

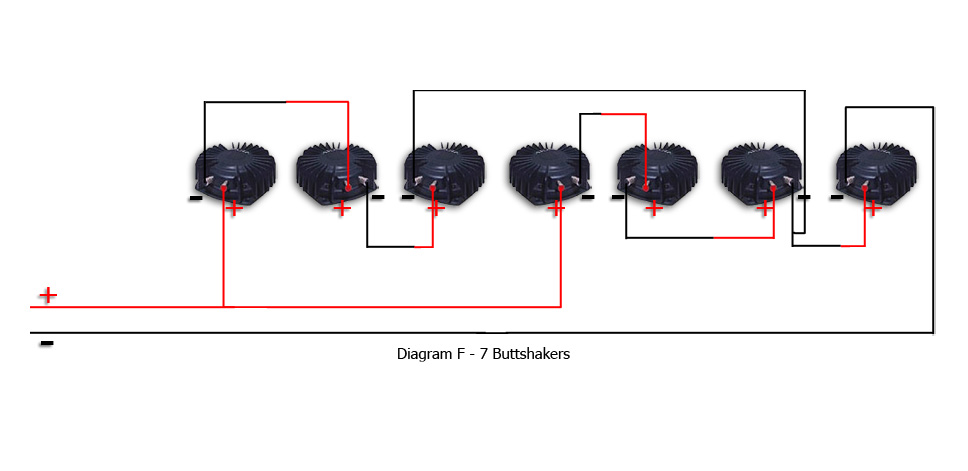

Diagram F -
7 Buttshaker Installation

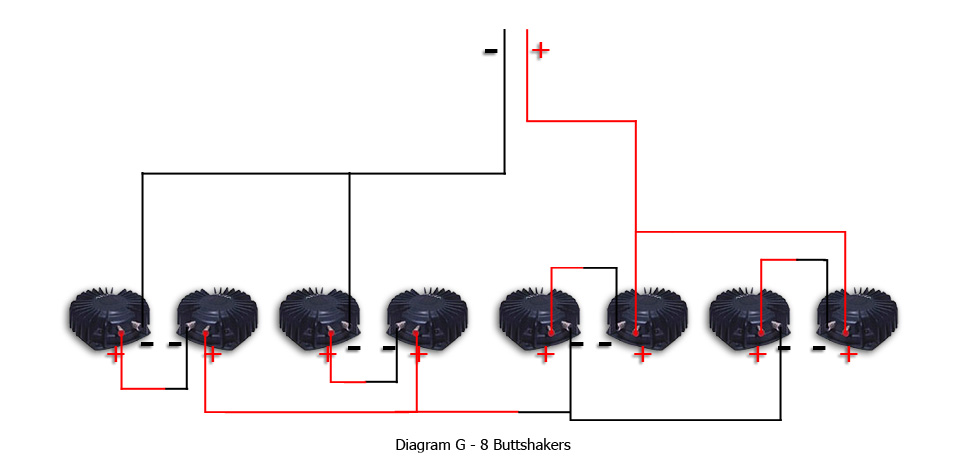

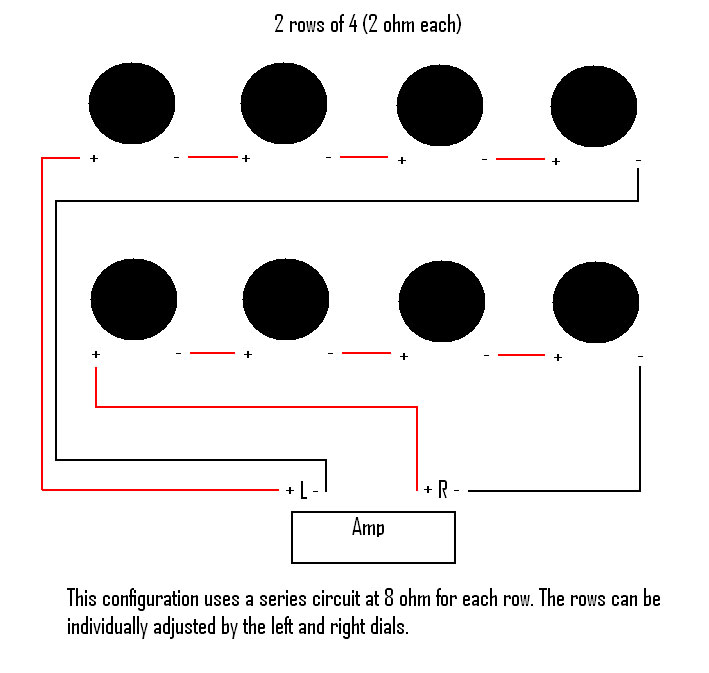

Diagram G -
8 Buttshaker Installation

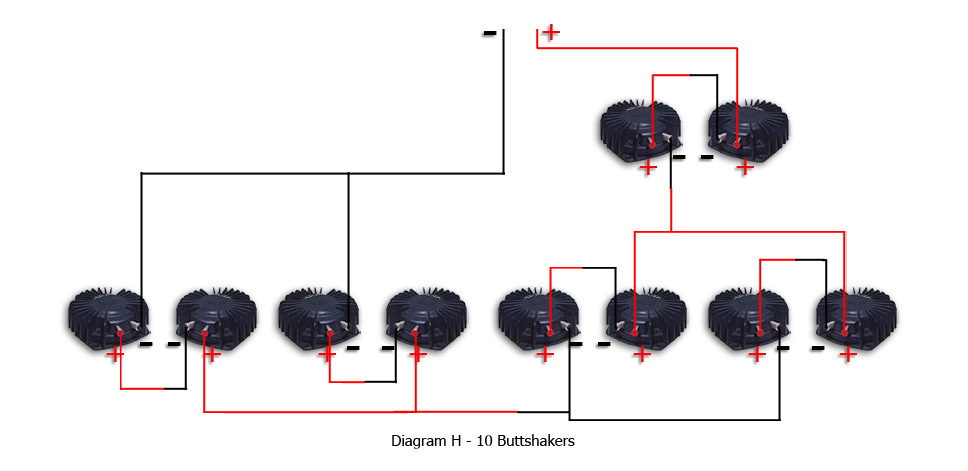

Diagram H -
10 Buttshaker Installation
Amplifier Hookup
Diagrams

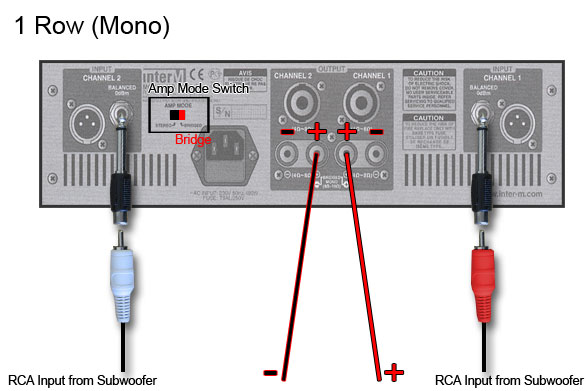

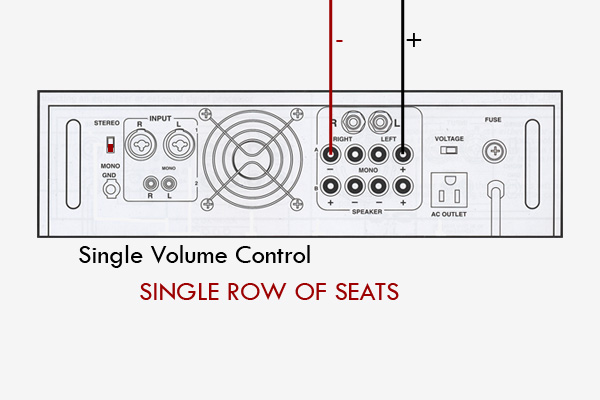

Diagram 01 -
Single Volume Control
(mono)

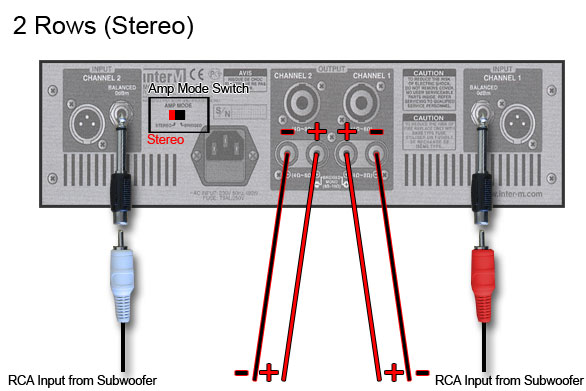

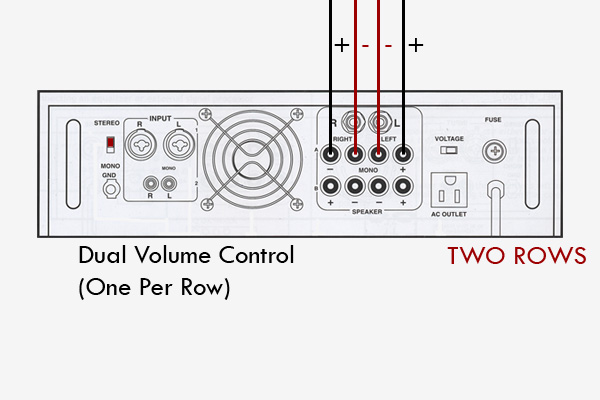

Diagram 02 -
Dual Volume Control
(stereo)
|
Specifications:
* Power handling Capacity:
25 watts.
* Impedance: 4 ohms.
* Usable Frequency response: 20 to 100
Hz.
* Fs: 42 Hz.
* Force Nominal: 10 lbs. per ft.
Mounting
Instructions
Mounting is quite simple.

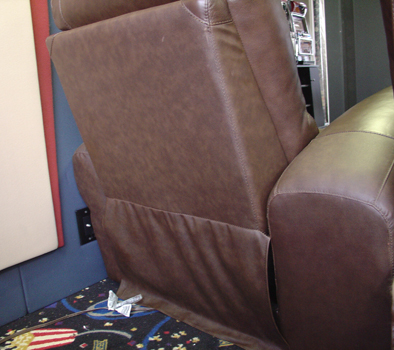

Step 1.) Lift the the flap on the rear
of the seat.

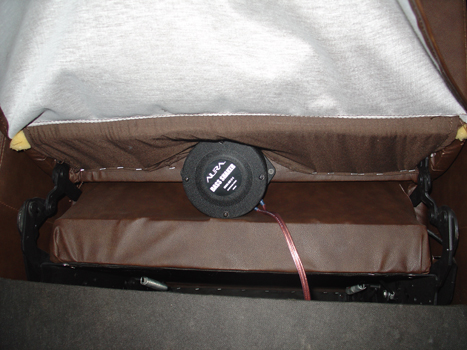

Step 2.) Mount the buttshaker.
Buttshaker

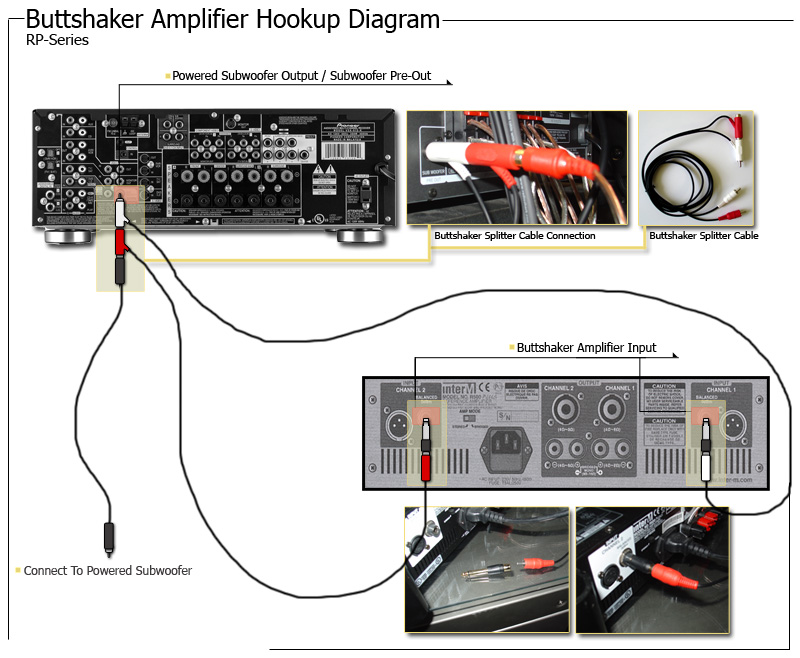

Receiver To Amplifier Hookup
Diagrams

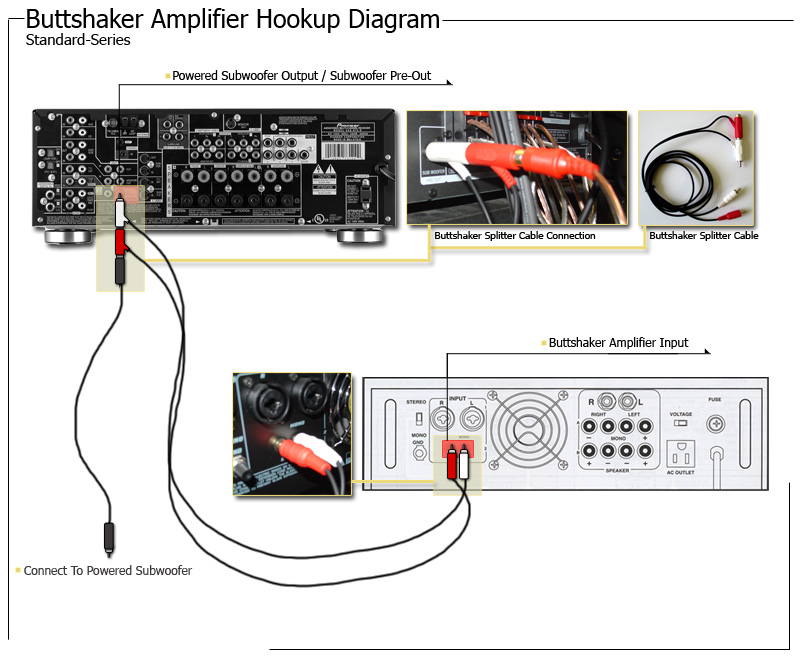

Diagram 01 -
Standard Amp Hookup
Diagram 02 -
RP-Series Amp Hookup |
